Low Platform Trailer (LPT)

Home / Low Platform Trailer (LPT)





Tyre Size Ply rating Pattern Rim width(inch) Unloaded inflation dimension +/-2% Static Loaded Radius(mm) +/-2%) Rolling circumference+/- 2.5%(mm) Type Load Capacity
Section Width(mm) Overall Diameter (mm) 15 KM/H 30 KM/H
MAX LOAD (kgs) INFLATION PRESSURE BAR MAX LOAD INFLATION PRESSURE BAR

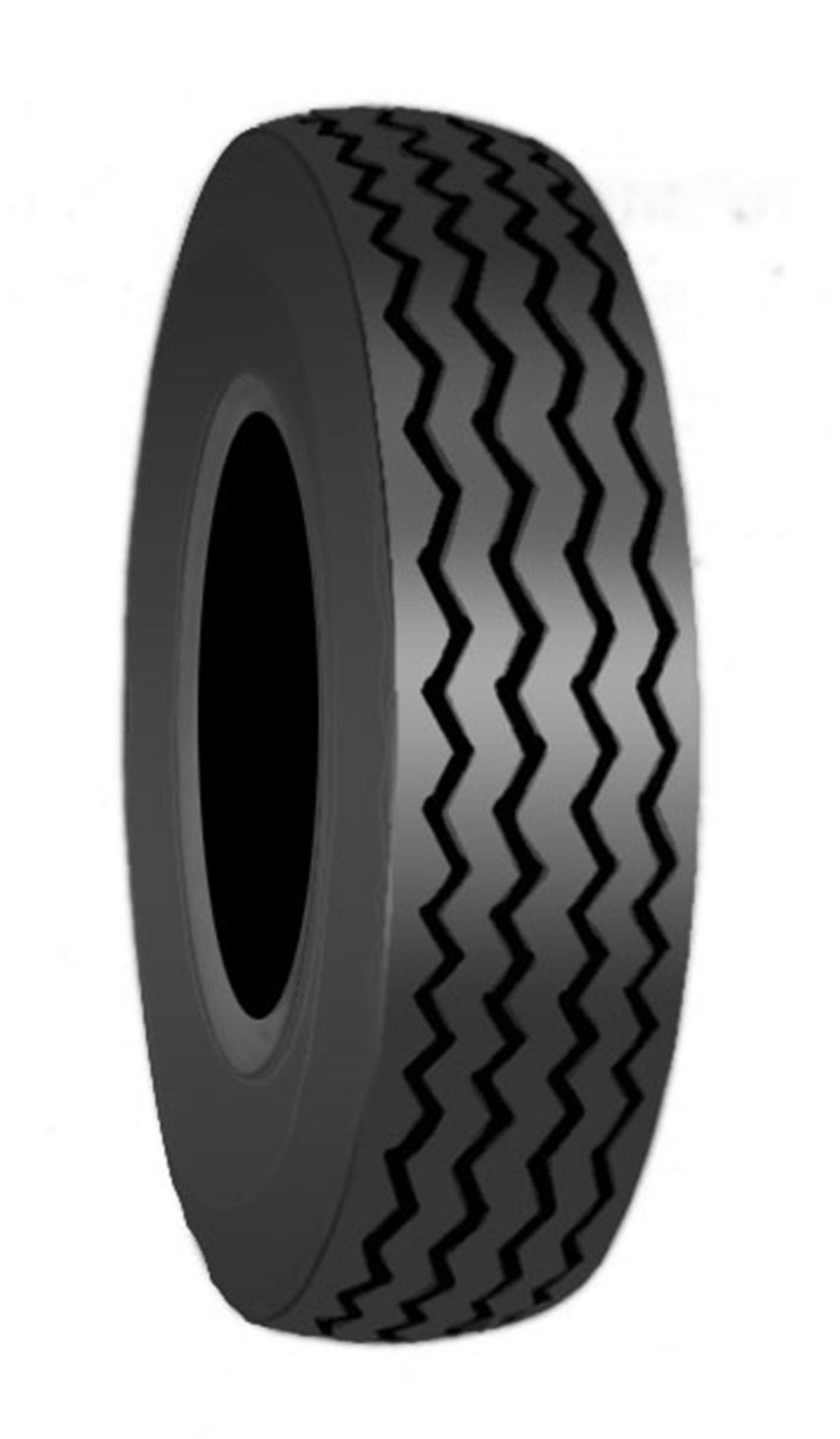

7.50-15 16 KT-180 6.0 215 808 356 2261 TL 2800 9.9 2300 2.9
8.25-15 14 KT-180 6.5 236 850 377 2513 TL 2960 9.9 3150 2.7
10.00-15 14 KT-180 7.5 272 927 408 2747 TL 3680 9.9 3450 2.3
10.00-15 16 KT-180 7.5 278 927 408 3858 TL 4120 9.9 3450 2.3


Tyre Size Ply rating Pattern Rim width(inch) Unloaded inflation dimension +/-2% Static Loaded radius (mm) Rolling circumference+/- 2.5%(mm) Type load capacity
section width(mm) overall diameter (mm) Single Dual
MAX LOAD INFLATION PRESSURE BAR MAX LOAD INFLATION PRESSURE BAR

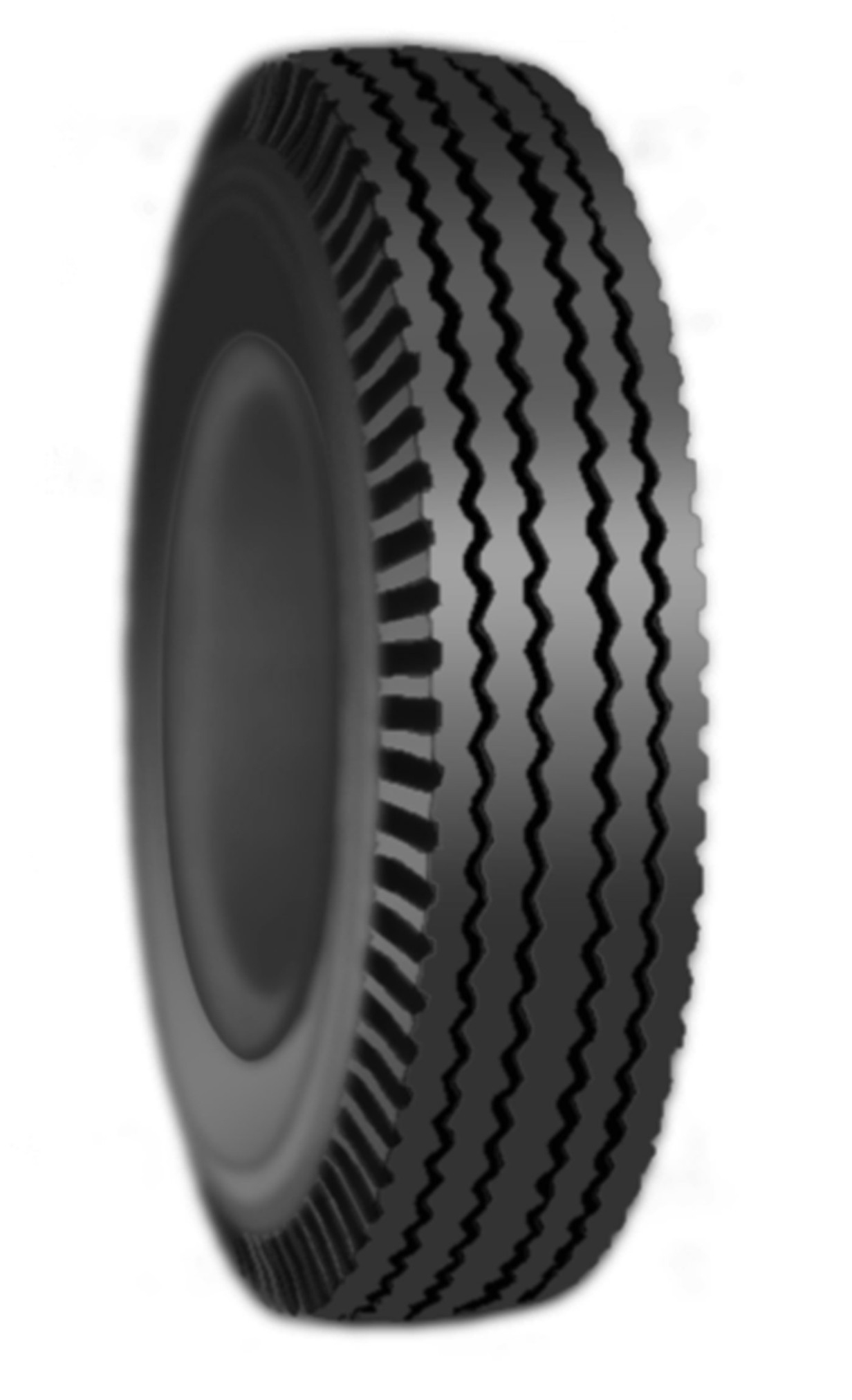

7-14.5 12 KT-181 6 185 677 260 2020 TL 1060 6.9 950 6.9
8-14.5 12 KT-181 6 212 767 321 2106 TL 1285 6.9 1130 6.9
9-14.5 12 KT-181 7 244 712 322 2114 TL 1500 6.9 1315 6.9
