Agricultural Implement Tyres

Home / Agricultural Implement Tyres





Tyre Size Ply rating Pattern Unloaded inflation dimension +/-2% overall diameter (mm) Static Loaded radius (mm) Rolling circumference+/- 2.5%(mm) Type load capacity
Rim width(inch) section width(mm) 30km/h Dual 40km/h with HLV
a-6load index MAX LOAD (kgs) INFLATION PRESSURE a-6load index MAX LOAD (kgs) INFLATION PRESSURE
10.5/80-18 10 KT-128 9 272 909 405 2655 TT 138 2360 5.1 131 1950 4.7
10.5/80-18 8@ KT-128 9 272 909 405 2655 TT 124 1600 4.2 119 1360 4
10.5/80-18 10 KT-128 9 272 909 405 2655 TT 128 1800 5.2 123 1550 5
12.5/80-18 12 KT-128 9 306 989 438 2890 TT 148 3150 5 142 2650 4.7

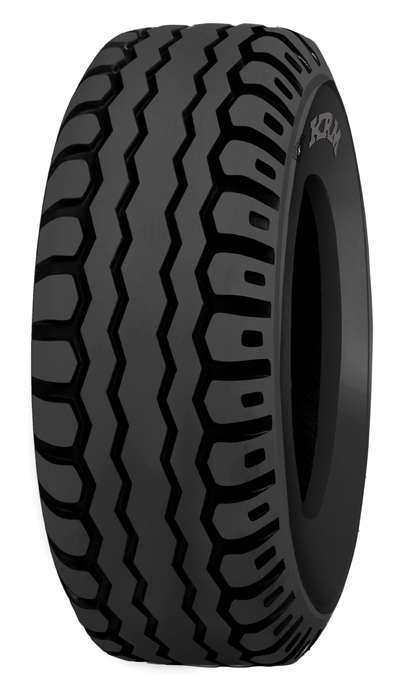

10.0/75-15.3 12 KT-129/129-A 9 272 762 343 2229 TT 132 2000 6.4 126 1700 6
10.0/75-15.3 14 KT-129/129-A 9 272 762 343 2229 TT 136 2240 7.5 120 1900 7
10.0/75-15.3 18@ KT-129/129-A 9 272 762 343 2229 TT 142 2650 7.1 138 2360 7.1
10.0/75-15.3 10 KT-129/129-A 9 272 762 343 2229 TT 137 2300 4.6 131 1950 4.5
10.0/75-15.3 12 KT-129/129-A 9 272 762 343 2229 TT 141 2575 5.6 135 2180 5.25
11.5/80-15.3 14 KT-129/129-A 9 295 846 370 2474 TT 145 2900 6.5 139 2430 6.25
11.5/80-15.3 16 KT-129/129-A 9 295 846 370 2474 TT 147 3075 7.4 141 2575 7
11.5/80-15.3 18@ KT-129/129-A 9 295 846 370 2474 TT 149 3250 8 145 2900 7.8
12.5/80-15.3 14 KT-129 9 310 888 387 2590 TT 147 3075 5.8 142 2650 5.5
11.5/80-15.3 16 KT-129 9 310 868 387 2590 TT 150 3350 6.5 144 2800 6.3

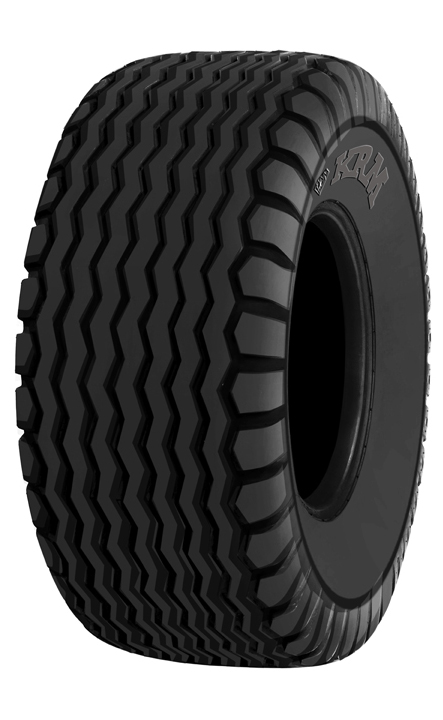

400/60-15.5 14 KT-201 13 400 875 385 2575 TT 141 2500 3.5 144 2800 3.5
10.0/80-12 10 KT-129 7/9 265 710 315 2085 TT 121 1450 3.9 117 1285 3.9
