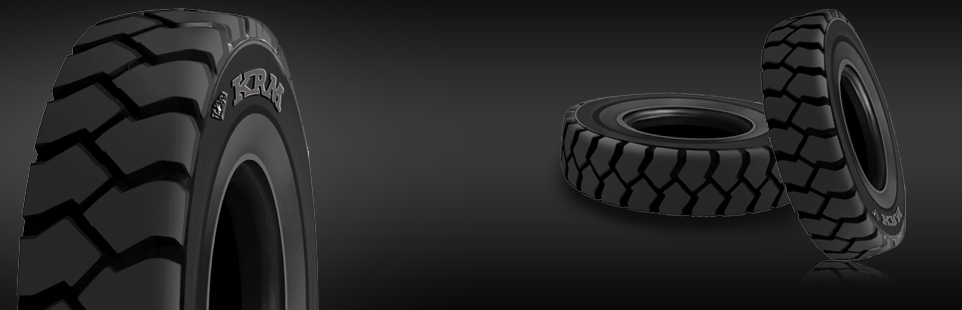

Forklift Tyres

Home / Forklift Tyres





Tyre Size Ply rating Pattern Unloaded inflation dimension +/-2% Tubes Valve Flap Rolling Circumference +/-2.5% (mm) load capacity
Rim width(inch) Rec./Att. section width(mm) overall diameter (mm) Forklift Truck upto 25 km/h other vehicles Side Load Inflation Pressure (+/- 15%) Bar
Load Wheel Steer Wheel 10 km/h 25 km/h Static 0km/h
5.00-8 8 KT 190 3.00D / 3.25I 138 480 5.00-8 JS2 5.00-8 1235 1235 950 1235 950 1435 8.25
18x7-8 16 KT 190 4.33R / 5 OF 175 474 18x7-8 V3-02-05 18x7-8 2145 2145 1650 2145 1650 2490 10
6.00-9 10 KT 190 4.00E / 5 OF 172 552 6.00-9 JS2 6.00-9 1715 1715 1320 1715 1320 1995 8.5
6.50-10 10 KT 190 5.00F / 5.50F 187 607 6.50-10 JS2 6.50-10 1950 1950 1500 1950 1500 2265 7.75
7.00-12 14 KT 190 5.00S / 5.50F 192 672 7.00-12 TR-75A 7.00-12 2755 2755 2120 2755 2120 3200 9
7.00-15 12 KT 190 5.5/5 202 754 7.00-15 TR-75A 7.00-15 3070 3070 2360 3070 2360 3565 8.25
7.50-15 14 KT 190 6/5.5 222 787 7.50-15 TR177A 7.00-15 3640 3640 2800 3640 2800 4320 9.25
825-15 14 KT 190 6.5/6 240 855 7.50-15 TR177 8.25-15 4225 4225 3250 4225 3250 4910 8
28x9-158 14 KT 190 7/6 220 720 8.15-15 TR75A 8.25-15 3770 3770 2900 3770 2900 4380 9
300-15 18 KT 190 8/8 300 840 300-15 TR-75A 300-15 2500 5625 4500 5850 4500 7500 7.5
300-15 20 KT 190 8/8 300 840 300-15 TR-75A 300-15 2500 6230 4500 6500 5000 8075 10
12.00-20 14,16,20,24,28 KT 190 8.5 315 1146 12.00-20 TR-75A 12.00-20 - 6560 5540 7290 5540 9030 6.6
